RTSP Streaming Guide: What It Is, How It Works, and Setup

RTSP streaming is a way to control and receive live video from IP cameras, media servers, and other network video sources. It is commonly used to bring a camera feed into OBS Studio, VLC, an NVR, or a monitoring system with low delay.

RTSP is usually used to move video inside a production or monitoring workflow. For example, OBS can receive an RTSP camera feed and then send the finished production to a streaming platform.

This guide explains what RTSP streaming is, how it works, what you need, and how to connect an RTSP camera to OBS. RTSP can support workflows such as event streaming, sports production, church services, recording, monitoring, and multi-camera video production.

Part 1: What Is RTSP Streaming?

RTSP stands for Real-Time Streaming Protocol. It establishes and controls a media session between a server and a client.

For example, imagine adding a live IP camera feed to OBS. RTSP works like a remote control: it tells the camera when OBS wants to start, pause, or stop the feed. RTP works more like a delivery vehicle, carrying the actual video and audio from the camera to OBS across the network.

Unlike HLS, which is designed for browser-friendly delivery to large audiences, RTSP is commonly used for IP cameras, security systems, local production networks, and professional video workflows. Its main strengths are low latency, direct camera access, and compatibility with applications such as OBS and VLC.

Common RTSP Usage Scenarios:

• IP Camera Production: Pull a live camera feed into OBS, VLC, an NVR, or production software.
• Local Network Monitoring: Send video from security or production cameras to a recording or monitoring system.
• Live Production: Bring one or more network camera feeds into a production environment for switching, recording, and graphics.
• Remote Viewing: Access a camera through a secure VPN, video gateway, or properly managed network instead of exposing the camera directly to the public internet.
• Multi-Device Workflows: Allow compatible clients to receive or monitor the same network video source.

Which Streaming Protocol Should You Use?

RTSP is a strong choice when you need to receive a live video source with low delay. RTMP, SRT, HLS, and WebRTC solve different parts of the streaming workflow, see our guide on the difference between RTSP, RTMP.

Part 2: How Does RTSP Work?

RTSP uses a client-server model:

• RTSP Server: The camera, media server, or device that makes the live video feed available.
• RTSP Client: The application or receiving device, such as OBS Studio, VLC, an NVR, or a compatible monitoring system.
• Transport Protocol: RTP usually carries the actual video and audio data over UDP or TCP.

A typical RTSP session follows this process:

1. The client connects to the RTSP server through an RTSP URL.
2. The server provides information about the available media stream.
3. The client requests the stream and starts the session.
4. RTP packets deliver the video and audio data.
5. RTSP commands control when the session starts, pauses, or ends.

What Do You Need for RTSP Streaming?

Before setting up an RTSP stream, prepare the following:

• A camera or media server that supports RTSP;
• The device's RTSP URL;
• A username and password if authentication is enabled;
• A computer, NVR, or receiver that can access the same network;
• OBS, VLC, or another RTSP-compatible application;
• Enough network bandwidth for the selected resolution and bitrate.

A wired Ethernet connection is usually more stable for long sessions or multiple high-resolution feeds. Wi-Fi can work well when the signal is strong and the network is not congested.

Understanding an RTSP URL

An RTSP URL may look like this:

rtsp://192.168.1.100:8554/live

The address contains several parts:

• rtsp:// identifies the protocol;
• 192.168.1.100 is the IP address of the camera or media server;
• 8554 is the RTSP port;
• /live identifies the stream path.

Some devices include a username, password, channel number, or stream quality setting in the URL.

RTSP works in a similar way across different devices. A computer may open the feed in OBS or VLC, an NVR may record it, and a mobile application may display it through the camera system. A web page normally needs the RTSP stream converted to HLS, WebRTC, or another browser-supported format.

Part 3: How to Set Up RTSP Streaming

The following setup uses OBSBOT Tail 2 as the RTSP camera and OBS Studio as the receiving application. Other cameras use a similar workflow, but the location and format of their RTSP settings may differ.

Step 1: Enable RTSP Mode and Find the Tail 2 RTSP URL

1. Open OBSBOT Center on your computer or Obsbot Start on your smartphone.
2. Connect your OBSBOT Tail 2 through USB, Wi-Fi, or Ethernet so that you can access its settings.
3. Open More Settings or select the gear icon.
4. Find and enable RTSP mode.
5. Go to General Settings > About Device.
6. Locate and copy the RTSP video stream address.

The address may look similar to:

rtsp://192.168.1.xxx:8554/live

Your camera and computer should be connected to the same local network. When RTSP mode is enabled on Tail 2, other video output modes, such as UVC or NDI, may be unavailable until you change the operating mode.

Step 2: Connect OBSBOT Tail 2 to OBS Studio Through RTSP

OBS Studio can receive the RTSP feed through Media Source or VLC Video Source.

Media Source is the simpler starting point for a single RTSP feed. VLC Video Source is useful when you want VLC-based decoding, playlist controls, or adjustable network caching. VLC Video Source requires VLC Media Player to be installed on the computer.

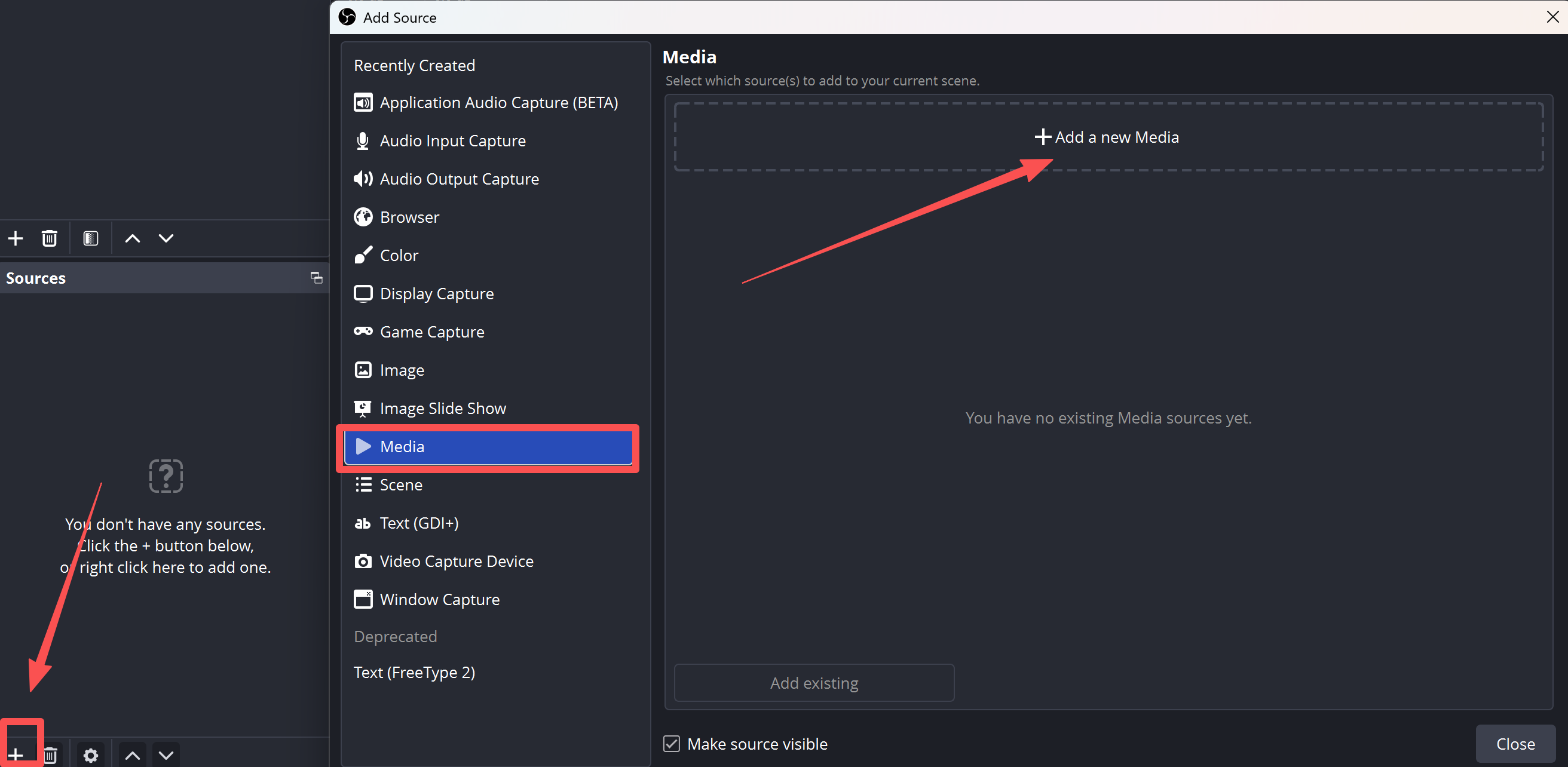

Method 1: Use Media Source

1. Open OBS Studio.
2. In the Sources panel, select the "+" button.
3. Choose Media Source.
4. Enter a source name, such as "Tail 2 RTSP," and select OK.

5. Clear the Local File checkbox.

6. Paste the RTSP URL into the Input field.

7. Enable hardware decoding if it is available and works reliably on your computer.

8. Select OK.

The Tail 2 feed should now appear in the OBS preview.

Method 2: Use VLC Video Source

1. Install VLC Media Player if it is not already installed.
2. Open OBS Studio.
3. In the Sources panel, select the "+" button.
4. Choose VLC Video Source.
5. Enter a source name and select OK.
6. In the Playlist section, select the "+" button.
7. Choose Add Path/URL.
8. Paste the RTSP URL and confirm it.

9. Adjust Network Caching if you need to balance lower delay against smoother playback.

10. Select OK to add the feed to the OBS scene.

If VLC Video Source does not appear in OBS, check that VLC and OBS use compatible 32-bit or 64-bit versions.

If the RTSP Feed Does Not Appear

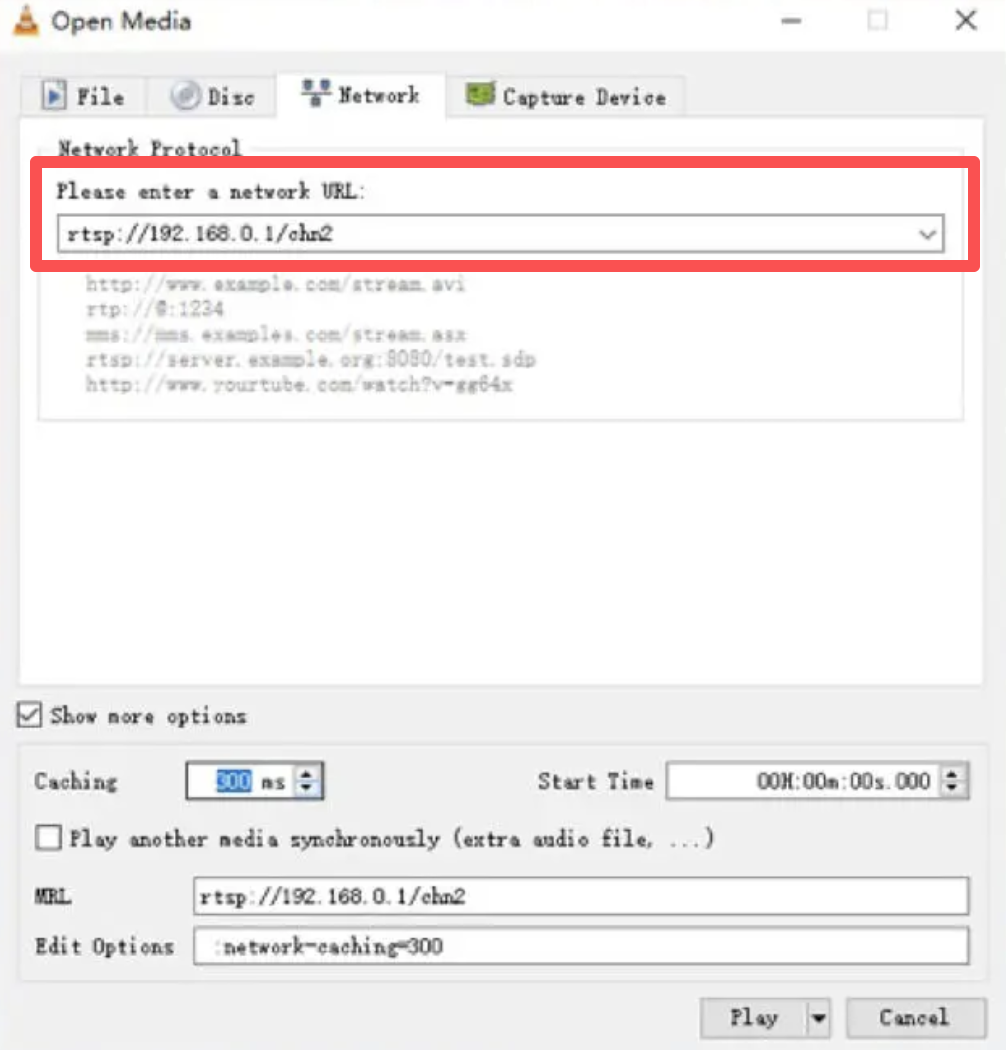

If the feed still does not appear, open your own RTSP URL in VLC using Open Network Stream. If VLC also cannot play it, the problem is more likely related to the camera settings, URL, credentials, or network rather than OBS.

Step 3: Use the RTSP Feed in OBS

Once the feed appears in OBS, you can:

• Record the incoming video locally;
• Add overlays, filters, graphics, and audio sources;
• Switch between multiple camera feeds;
• Build scenes for events, lessons, sports, or church services;

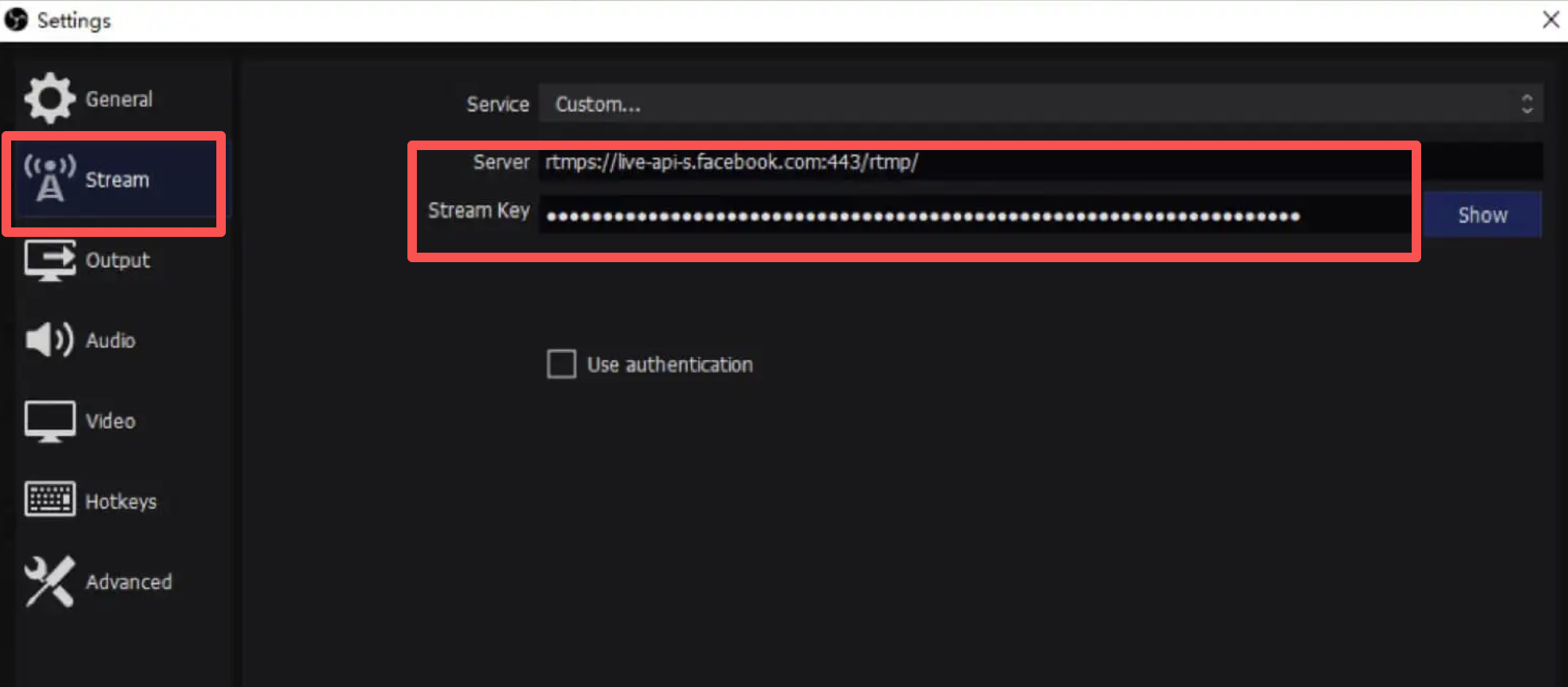

• Send the completed production to YouTube, Twitch, Facebook, or another supported platform.

RTSP brings the camera feed into OBS. OBS then encodes and publishes the final program through the protocol supported by the destination platform.

Part 4: FAQs About RTSP Streaming

1. Can I use an RTSP stream directly in a web browser?

Most modern browsers cannot play RTSP in a standard HTML video player. To show an RTSP camera feed on a web page, a server or gateway normally needs to convert it to WebRTC, HLS, DASH, or another browser-supported format.

2. Is RTSP still being used?

Yes. RTSP is still widely used for IP cameras, local network monitoring, NVR systems, video production, and software such as OBS and VLC. It remains useful when low delay and direct access to a camera feed are more important than browser compatibility.

3. Do all IP cameras support RTSP?

No. Some consumer cameras use proprietary applications and do not provide an accessible RTSP feed. Before purchasing or configuring a camera, check its specifications, user manual, network settings, and supported protocols.

4. How do I find my camera's RTSP URL?

Look in the camera's network, streaming, or device information settings. The manufacturer's user manual or support page may also provide the required URL format. You may need the camera's IP address, RTSP port, username, password, channel, and stream path.

5. Can OBS receive an RTSP stream?

Yes. OBS can receive an RTSP URL through Media Source or VLC Video Source. Media Source is a straightforward option for a single feed, while VLC Video Source provides VLC-based decoding, playlist support, and network caching controls.

6. Can I stream RTSP directly to YouTube?

YouTube does not normally accept a camera's RTSP URL as the public live input. A common workflow is to receive the RTSP camera feed in OBS and then send the completed program from OBS through a protocol supported by YouTube.

7. What is the difference between ONVIF and RTSP?

ONVIF is a standard that helps compatible IP devices handle discovery, configuration, and camera control. RTSP establishes and controls the media streaming session. An IP camera may use ONVIF for device management and RTSP for delivering its live video feed.

Conclusion

RTSP streaming is best suited to receiving live video from cameras and media servers with low delay. A complete setup requires a compatible video source, the correct RTSP URL, a stable network, and receiving software such as OBS or VLC.

For an OBS workflow, first enable RTSP on the camera, copy its stream address, and add it through Media Source or VLC Video Source. Once the feed is available in OBS, it can be recorded, combined with other sources, or included in a finished live production.
